Rare Earth Neodymium tube magnets for sale Admin Edit

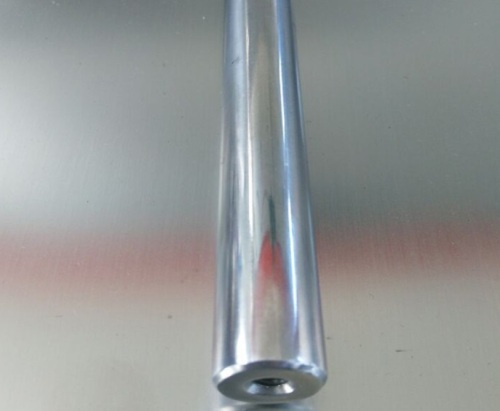

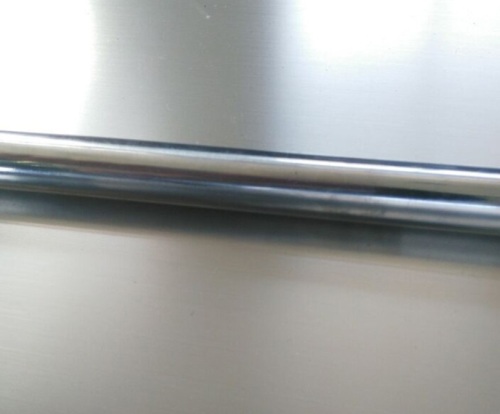

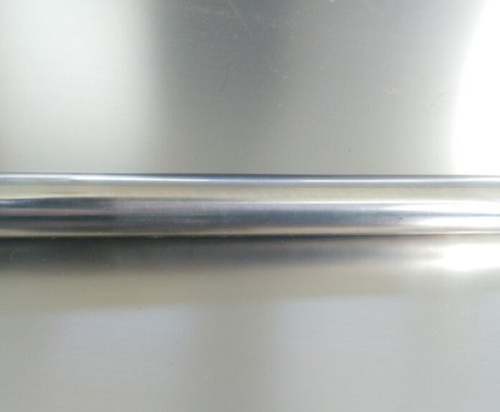

Tube magnets are the main part of magnetic grate separators. They can effectively remove Ferrum contamination and metal particles from materials.

  • Min. Order: 200 Piece/Pieces
  • Trade Term: FOB,CFR,CIF
  • Payment Terms: L/C, D/A, T/T, WU
  • Place of Origin: Zhejiang, China (Mainland)
  • Means of Transport: Ocean, Air
  • Production Capacity: 1000 pcs per day

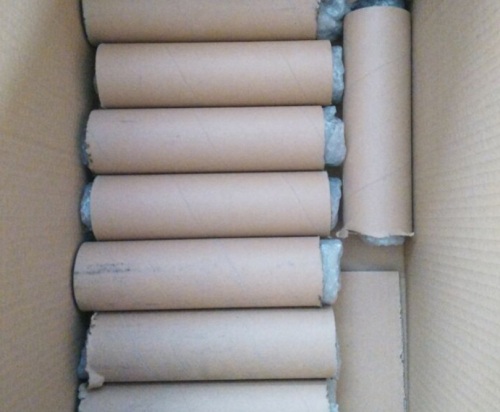

  • Packing: carton / pallet
  • Product Description

    Product Attribute

    Tube magnets are the main part of magnetic grate separators. They can effectively remove Ferrum contamination and metal particles from materials.


    Features:

    1. Standard round bar has a length of 25 mm(1 inch) diameter. As required, it can reach the maximum length of 2500mm. Magnetic tube or other different shape and dimension are also available.
    2. 304 or 316L stainless steel are available for pipeline material which can be finely polished and meet the standard of food or pharmacy industry.
    3. Standard working temperature≤80℃ and maximum working temperature can reach 350℃ as required.
    4. Various kinds of ends like the nail head, thread hole, double screw bolt are also available.
    5. Different kinds of the magnet like Ferrum magnet or other rare earth magnets are available to meet every customer's requirement. The maximum magnetic strength of 25mm (1 inch) diameter can reach 13,000GS (1.3T).


    The following is the relationship between diameter, magnetic strength and maximum operating temperature for reference.

    Part No

    0.25T

    0.5T

    0.7T

    0.9T

    1T

    1.1T

    1.3T

    Ø10

    √EH

    √H

    -

    -

    -

    -

    -

    Ø16

    √EH

    √EH

    √EH

    √H

    √H

    -

    -

    Ø19

    √EH

    √EH

    √EH

    √H

    √H

    -

    -

    Ø20

    √EH

    √EH

    √EH

    √SH

    √H

    √H

    -

    Ø22

    √EH

    √EH

    √EH

    √EH

    √EH

    √H

    -

    Ø23

    √EH

    √EH

    √EH

    √EH

    √EH

    √H

    -

    Ø25

    √EH

    √EH

    √EH

    √EH

    √EH

    √EH

    √H

    Ø28

    √EH

    √EH

    √EH

    √EH

    √EH

    √EH

    √H

    Ø32

    √EH

    √EH

    √EH

    √EH

    √EH

    √EH

    √H

    Ø38

    √EH

    √EH

    √EH

    √EH

    √UH

    √H

    √H

    Ø50

    √EH

    √EH

    √EH

    √UH

    √H

    √H

    √H

    Ø76

    √EH

    √EH

    √EH

    √H

    √H

    √H

    √H

    Ø100

    √EH

    √EH

    √H

    √H

    -

    -

    √H




    Delivery Date: 15~25 days Shape: Bar
    Application: Separator Type: Permanent
    Composite: Neodymium Magnet Brand Name: LEC
    Size: Custom Material: Neodymium magnet + stainless steel
    Tolerance: ±0.1 mm HS Code: 85051190
    Certificate: ISO9001:2008
  • Min. Order: 200 Piece/Pieces
  • Trade Term: FOB,CFR,CIF
  • Payment Terms: L/C, D/A, T/T, WU
  • Place of Origin: Zhejiang, China (Mainland)
  • Means of Transport: Ocean, Air
  • Production Capacity: 1000 pcs per day
  • Packing: carton / pallet
  • Delivery Date: 15~25 days
  • Shape: Bar
  • Application: Separator
  • Type: Permanent
  • Composite: Neodymium Magnet
  • Brand Name: LEC
  • Size: Custom
  • Material: Neodymium magnet + stainless steel
  • Tolerance: ±0.1 mm
  • HS Code: 85051190
  • Certificate: ISO9001:2008
  • Category: Tube Magnets
